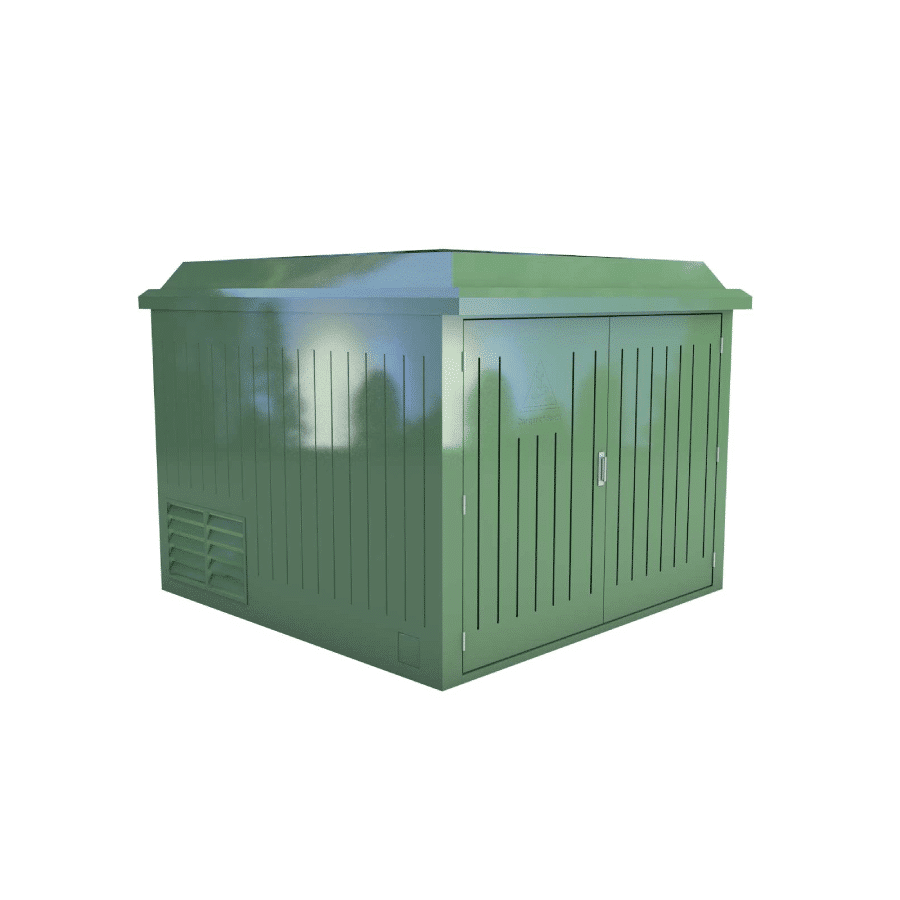

Description GRP Housing developed to UK DNO and IDNO requirements and ideally suited to protect electrics, transformer and substation equipment. Single Skin GRP construction using Class 2 fire retardant resin to BS476 Part 7. Double Doors complete with Stainless Steel hinges, shoot bolts to passive leaf, 10/10 cord pull door stays and espagnolette lock for padlock. Removable Threshold. Lockable Generator Cable Flap 170mm x 170mm (hinged at the top with shoot bolt opened from inside). Danger of Death Sign on Door. 150mm roof overhang front and back with galvanised expamet mesh to provide under eaves ventilation. 4 off louvre vents 1035mm x 616mm (1 off in each side wall and 2 off in rear wall 1 high/1 low). Explosion Relief specification to meet UK DNO IDNO requirements. External Finish : Semi-Gloss Gelcoat Finish to Customer’s Requirements. Internal Finish : White GRP. Width (external) 2800 mm Depth (external) 2800 mm Height (wall panel) 1950 mm Height (max) 2398 mm Door Information Clear Width (mm) 2390 mm Clear Height (mm) 1720 mm Please note the transformer range are designed for all weather transformers and give a high volume of ventilation. If you have specific IP requirements, please contact the sales team to discuss its suitability. More Information…
