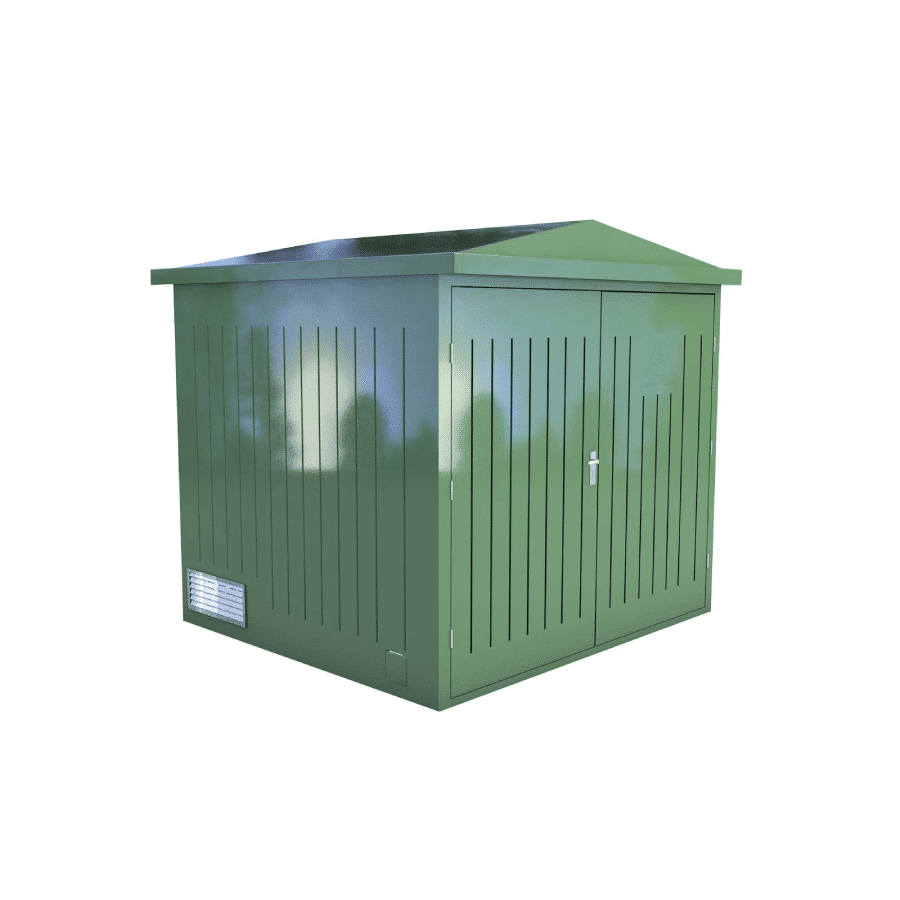

Description GRP Housing developed to UK DNO and IDNO requirements and ideally suited to protect electrics, transformer and substation equipment. Single Skin GRP construction using Class 2 fire retardant resin to BS476 Part 7. Roof includes encapsulated foam core material. Double Doors complete with Stainless Steel hinges, shoot bolts to passive leaf, 10/10 cord pull door stays and espagnolette lock for padlock. Removable Threshold. 5 off galvanised louvered vents at low level (3 off in rear wall and 1 off in each side wall). Roof overhang filled with galvanised expamet mesh to provide under eaves ventilation at front and rear. Explosion Relief specification to meet UK DNO IDNO requirements. External Finish : Semi-Gloss Gelcoat Finish to Customer’s Requirements. Internal Finish : White GRP. Width (external) 2700 mm Depth (external) 2400 mm Height (wall panel) 2200 mm Height (max) 2570 mm Door Information Clear Width (mm) 2490 mm Clear Height (mm) 1970 mm Please note the transformer range are designed for all weather transformers and give a high volume of ventilation. If you have specific IP requirements, please contact the sales team to discuss its suitability. More Information…
